Renu

Renu Electronics Programmable Logic Controllers

Ethernet

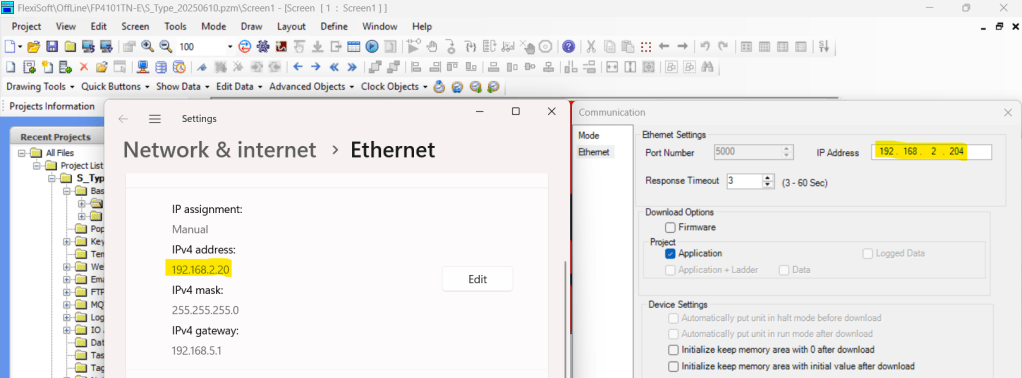

Renu Electronics Ethernet Settings

Its important to set the computer’s IP address and the Programmable Logic Controller’s IP address to share the first three octets. In the Above Example 192.168.2.### where the last octets are unique before transferring the program

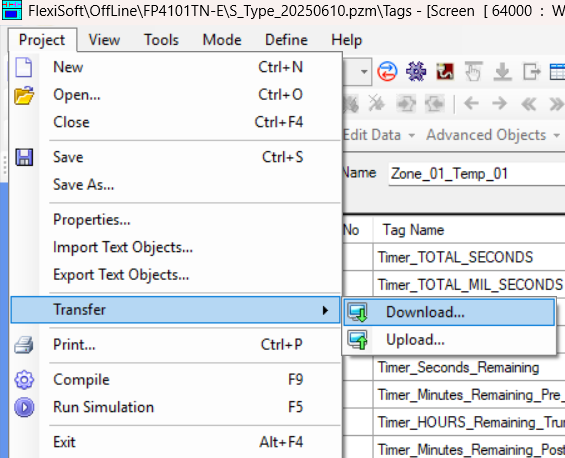

Renu PLC Transfer Program

COMs RS485

DB 9 Pin, Jumper Pin 1 TX+ with Pin 4 RX+ and also Pin 8 TX- with Pin 9 RX-
