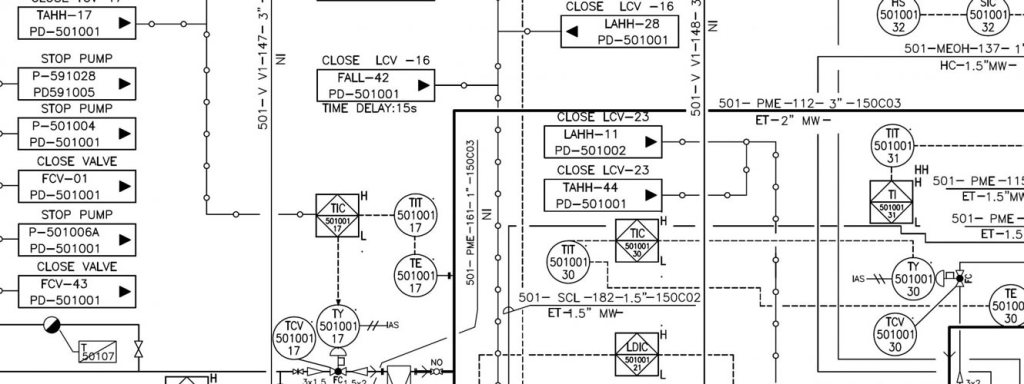

P&IDs are an important essential tool to communicate how a process works.
They are an essential in communicating the following
- Process or Piping
- Process/Piping Codes are organized by material flowing through that process or piping. It is a best standard for a facility to set standards for each material and how to handle it. Setting standards such as material of construction, pipe supports by weight of pipe. (linear foot and diameter of piping can be corelated to the weight of the pipe.
- Process Piping/Flow Naming ###-###(#)-###-#”-######
- Plant Area Code: ###-
- Process Stream: ###(#)-
- Unique Page Line ID ###-
- Six Character Process Stream Piping Code: ######
- Heat trace category Insulation Thickness and Type ##-#”-##
- Automation types
- Control Loops Feedback/Feedforward
- Batch or Continuous
- Automation Naming (##)
- Safety
- Equipment Interlocks
- Equipment Safety
- Alarm Rationalization
- Tie Ins to Wire Diagrams
