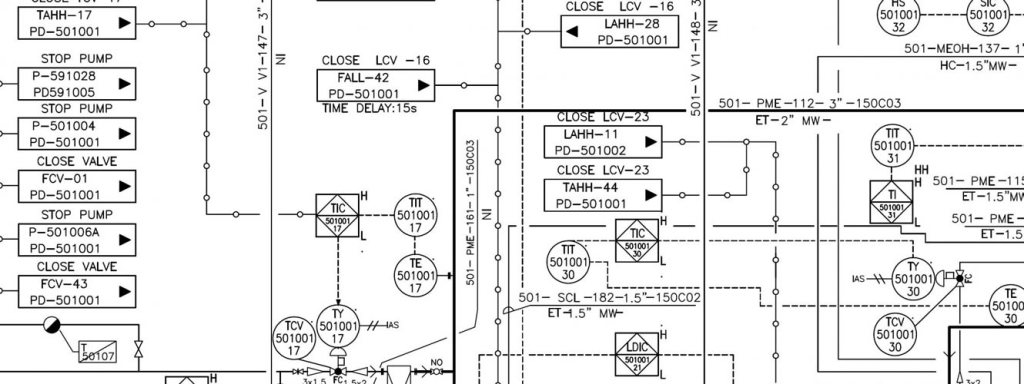

P&IDs

P&IDs are part of an Enumeration of the components, signals or content, from Source to Node

They are an essential in communicating the following

• Process or Piping
  • Process/Piping Codes are organized by material flowing through that process or piping and a process code to index.
  • Setting Standards by Process
    • Process ID
      • Name of the Process
      • Index Code for the Process
    • Material of Construction or Bill of Materials
    • Scale or size
    • Limitations
      • Pipe supports per weight of pipe or per foot of pipe at a specific diameter with part number and known weight per foot
• Process ID Name #(#)#-######-(#)##
  • Prefix 2 or 3 Digits for Automation Type #(#)# *See Instrument Identification Letters Table
  • Suffix 2 or 3 Digits
    • The first 00-99 are saved for Instrumentation that may require connection to a PLC or SCADA system
    • The next 100-199 are saved for Equipment tags that do not require Instrumentation to the PLC or SCADA
    • Manual Valves occupy 200-499 and require additional information like Valve Type, Material of Construction, Pressure Rating, Seal Material, Connection Type One, Connection Type Two
    • Piping IDS can be 500 to 599
    • Standard Operating Procedures 900-999
  • Alternative Suffix Use, the hundreds column references a sub system page number such as column Number in elcCAD, Row-Slot on a PLC or page in a site process. This method Limits Smart-Indexing of device category
• Automation types and IDs #(#)# *See Instrument Identification Letters Table Example
  • Examples
    • FIT######-## Flow Indication Transmitter
    • FCV######-## Flow Control Valve
    • IHS######-## Current Hand Switch

• P&ID page 6 Digits ###### to encode the Plant/Process location
  • Plant(#)Area (#)
    • #0 Recycle and Waste Steams
    • #1 Intakes/Raw Materials
    • #2 Plant Exiting Streams
    • #3 Plant Core Operation
    • #9 Utilities
  • SubArea (##)90 Utilities Waste and Recycles
    • 91 Power and Distribution
    • 92 Water and Distribution
    • 93 boiler and Heat Sources
    • 94 Chillers and Heat
    • 95 Air and Compressed Gasses
    • 99
  • Unique Page (##)
• Example (######) as (139201) Plant 1, Core Operations, utilities/water distribution, unique page 01
• Tie Ins to Wire Diagrams known as Single Line Diagrams
  • Instrument names are often Referenced in the Single Line Wire Diagrams
  • Having unique instrument and element names greatly aids the speed of Installation Qualification, and Operation Qualification

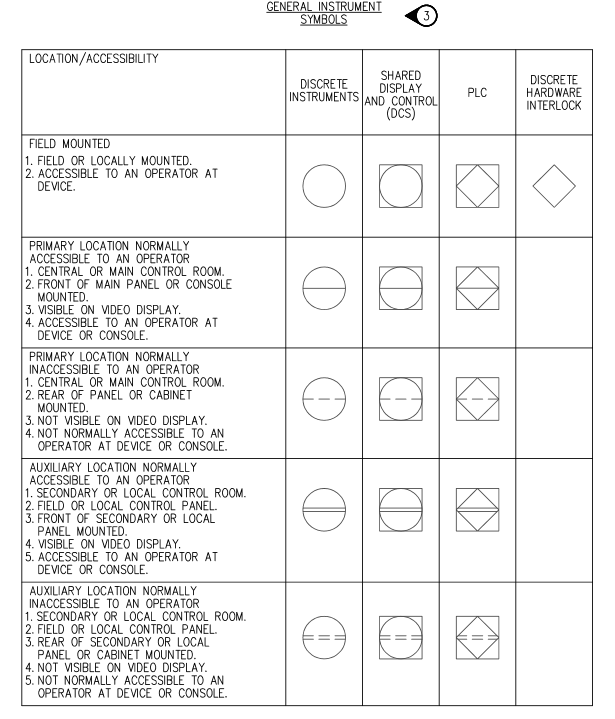

• General Instrument symbols used in P&IDs to indicate accessibility of the Instrument either in the field or in a programmable logic controller
